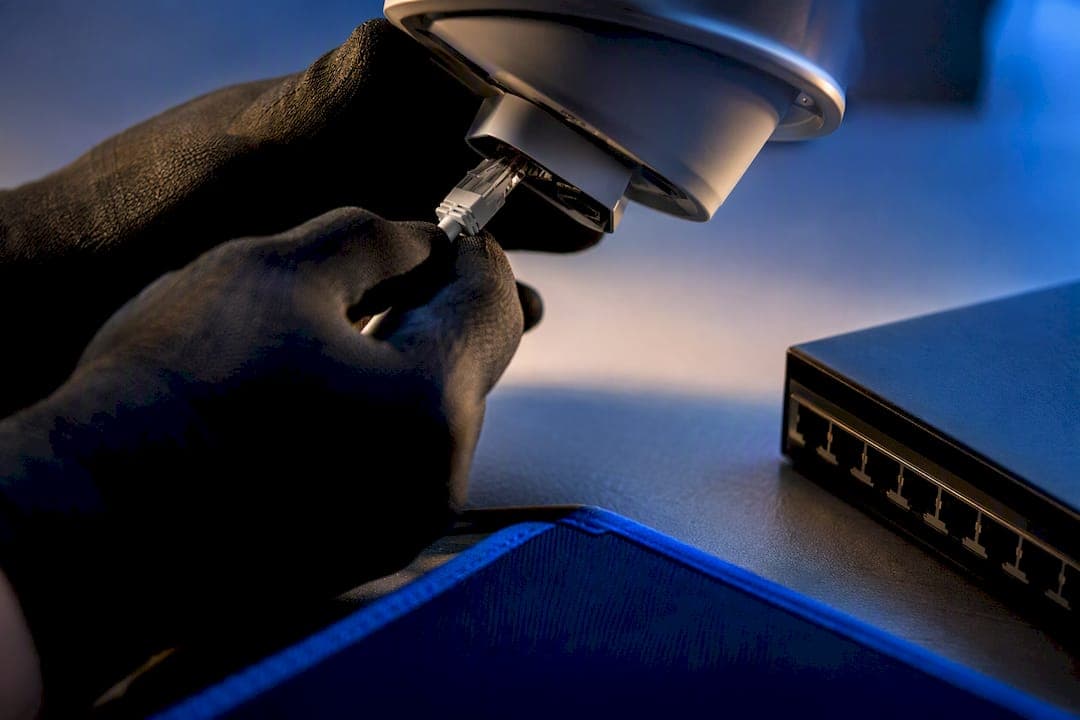

Stop Random Camera Reboots: Match IEEE PoE Classes for Australian CCTV

September 30, 2026
Stop Random Camera Reboots: Match IEEE PoE Classes for Australian CCTV

PoE has become the standard way to power modern IP CCTV cameras, sending both electricity and data down one Ethernet cable. Standard Cat5e or Cat6 runs handle it up to 100 meters, and the standard you need depends on the camera: IEEE 802.3af suits basic fixed cameras, 802.3at covers most IR and pan-tilt-zoom models, and 802.3bt handles heaters and high-draw PTZ units. Camera wattage, cable run, and existing infrastructure decide which one you need.

TL;DR:

  • Cameras with heaters or PTZ functions often require PoE+ (802.3at) or PoE++ (802.3bt), necessitating appropriate switches with sufficient power capacity.
  • It's crucial to match camera maximum wattage with switch class and ensure the power budget accounts for inrush current during cold starts, especially for outdoor equipment.
  • High-power, long-distance runs should use thicker cabling like Cat6A and be installed with proper bundling, ventilation, and certification to prevent overheating and signal loss.
  • Managed PoE switches with real-time power monitoring and remote reboot features improve system reliability, especially in larger or outdoor setups.
  • Professional installation involves site surveys, adherence to cabling standards, proper surge protection, and detailed documentation to avoid common faults and ensure system durability.
Djcengineering
Build A More Reliable CCTV System
DJC Engineering designs and installs professional CCTV systems with structured cabling and secure 4K cameras for homes and businesses.
Explore DJC Engineering

Table of Contents

How PoE works for CCTV: PSE, PD, and the IEEE standards

Every PoE connection has two roles. The Power Sourcing Equipment, or PSE, is the switch or injector pushing power onto the cable. The Powered Device, or PD, is the camera drawing it. Before any power flows, the PSE runs a detection check: a low-voltage probe confirms a genuine PoE device is on the other end rather than a non-PoE device that could be damaged by full voltage. Once detection passes, a classification step tells the PSE roughly how much power the camera needs, so it can allocate its budget correctly across every port.

The IEEE 802.3 standards that govern this exchange break into three generations:

  • 802.3af delivers up to 15.4 watts at the source, enough for basic fixed cameras with no heater or IR array.
  • 802.3at (PoE+) steps up to 30 watts, the working standard for most IR-equipped and small PTZ cameras.
  • 802.3bt (PoE++) Type 3 and Type 4 push PD-level power to levels around those defined by the 802.3bt standard, covering heated housings, large PTZ domes, and multi-sensor cameras.

Backward compatibility matters here. If a camera needs more power than the PSE can supply, classification prevents the mismatch from ever reaching a dangerous point: the switch either refuses to power the port fully or negotiates down, and the camera simply will not boot or will drop features like heaters and IR illuminators. This is why pairing an 802.3bt camera with an 802.3af switch causes cameras to reboot randomly or lose IR at night, a common troubleshooting call for installers. Newer switches remain interoperable with older PDs, but the reverse is not guaranteed, and matching classes at the design stage avoids the problem entirely.

Power classes and choosing PoE, PoE+, or PoE++ for CCTV

IEEE PoE classes compared for CCTV power

Camera type dictates PoE class more than anything else. A basic fixed lens camera with no extras typically draws under 7 watts, comfortably within 802.3af. Add an infrared array for night vision and draw climbs into the 9 to 12 watt range, still usually fine on 802.3af but tight enough that many installers default to 802.3at for headroom. Heaters, fan assemblies, and PTZ motors change the math entirely: a heated PTZ dome can draw 30 to 60 watts depending on temperature and movement, pushing the requirement into 802.3bt Type 3 or Type 4 territory.

A practical way to match class to camera:

  1. Identify the camera's rated maximum consumption from its datasheet, not its average draw.
  2. Add the PSE-side overhead the standard specifies, since cable loss means the source must supply more than the PD actually uses.
  3. Round up to the next standard class rather than the nearest one, since a camera sitting at the ceiling of its class leaves no margin for cold-weather heater cycling.
  4. Confirm the chosen switch or injector actually delivers that class per port, not just in aggregate budget.

802.3at is usually sufficient for the majority of fixed and IR cameras on a typical residential or small commercial job. 802.3bt becomes necessary once heaters, multi-imager cameras, or full PTZ units enter the design, and increasingly for AI-enabled cameras running onboard processing that draws more continuously than older sensors.

Pro Tip: Size your PoE budget to the camera's cold-start draw, not its idle draw. Heaters and IR arrays often pull the most power in the first few seconds after a cold morning power-up, and that inrush spike is what trips undersized ports.

Cabling, distance limits, and installation best practices

Cable choice affects both signal integrity and how much heat a PoE run generates. Cat5e handles 802.3af and 802.3at without issue on short to mid-length runs, but its thinner conductors run hotter under sustained high-power loads. Cat6 offers thicker copper and better shielding, and Cat6A is worth specifying wherever cable choice affects power delivery on 802.3bt Type 3 or Type 4 runs, particularly in bundles or conduit where heat has nowhere to go.

Standard copper Ethernet is limited to 100 meters end to end, camera to switch. Beyond that, three options work: a midspan injector closer to the camera to shorten the copper run, local power at the camera location if mains is available, or fiber with a PoE media converter at each end for genuinely long backbone runs between buildings or across a rural property.

Heat is not a minor concern on high-power bundles. The IEEE's practical PoE tutorial documents measurable temperature rise in tightly packed cable bundles carrying Type 3 and Type 4 loads, since more current per conductor means more resistive heating when dozens of cables run side by side in a conduit or cable tray. Installers should:

  • Avoid bundling more than a handful of high-power PoE runs tightly together over long distances.
  • Use cable trays or looser bundling that allows airflow rather than cinched-together runs.
  • Derate expected performance in bundles above typical sizes referenced in IEEE and TIA cabling guidance.
  • Test and certify every run for continuity, length, and attenuation before commissioning.

In Australia, cabling work of this kind falls under AS/CA S009 installation requirements, which sets the baseline for customer cabling work, and installers should also be aware of ACMA's cabling provider rules covering who is licensed to perform this work. Proper labeling at both ends of every run, along with a test report showing measured length and continuity, is standard practice for any compliant installation and saves hours during later fault-finding.

PoE infrastructure choices: switches, injectors, and PoE NVRs

Three approaches deliver PoE to a camera system, and they suit different job sizes. A simple injector adds power to a single Ethernet run between an existing non-PoE switch and one camera, useful for a one-off addition but impractical to scale past a handful of cameras. A managed PoE switch centralizes power delivery across every port and adds visibility a plain injector cannot offer.

  • Managed switches show per-port power draw in real time, so a failing camera or a cable fault shows up before it causes a blackout on the whole run.
  • Per-port power limits stop one PD fault from tripping the entire switch's power budget.
  • Scheduled power cycling lets you reboot problem cameras remotely on a timer instead of sending a technician out.
  • A PoE watchdog or "PD alive check" feature can automatically power-cycle an unresponsive camera without human intervention.

A PoE-enabled NVR that powers cameras directly from its own built-in ports is a convenient option for small systems, typically four to eight cameras, since it collapses switch and recorder into one box. The limit shows up once you need to add cameras beyond the NVR's fixed port count or want cameras on a separate network segment from the recorder, at which point a standalone managed switch scales more cleanly.

Pro Tip: Budget rack space and a surge-protected power feed for your PoE switch from day one. A switch feeding a dozen outdoor cameras is a lightning-exposure point, and surge protection at the switch is far cheaper than replacing switch ports after a storm.

Surge protection beside PoE switch

Camera power draws and real examples with a budgeting checklist

Camera power needs vary widely by feature set. As illustrative examples: a basic fixed IP camera with no IR typically draws somewhere around 4 to 7 watts. Add an infrared illuminator for night coverage and that climbs to roughly 8 to 12 watts, a figure worth checking against lighting requirements when specifying IR and lighting features for a job. A heated outdoor housing or a compact PTZ can land anywhere from 15 to 30 watts, and a full-size heated PTZ dome with wiper and fan can reach 30 to 60 watts. These are illustrative ranges, not specifications for any particular product, and every camera's datasheet should be checked individually.

Sizing a system works as a straightforward sum:

  1. List every camera's rated maximum wattage from its datasheet, say 8 watts for eight fixed IR cameras and 25 watts for eight heated PTZ units, giving 64 watts plus 200 watts for this illustrative 16-camera example.
  2. Add that up for a raw total, 264 watts in this example.
  3. Apply 20 to 30 percent headroom for inrush and future additions, bringing the working budget to roughly 317 to 343 watts.
  4. Check that figure against the switch's total PSE power budget, not just its per-port maximum, since a 24-port switch rated for 370 watts total can still run out of budget with only 16 high-draw cameras attached.
  5. Confirm no single port exceeds its class limit even if the total budget has room to spare.

Inrush current matters more than steady-state draw in most real failures. A camera's heater or IR array can spike well above its rated wattage for a second or two on cold starts, and a switch with no headroom built in will refuse power or cycle the port, which looks like a random camera dropout rather than a power problem.

Reliability, troubleshooting, and serviceability for PoE CCTV systems

Most PoE faults fall into three patterns: no image at all usually means a detection failure or a bad cable termination, intermittent power points to a marginal run length or a failing injector, and repeated port shutdown usually means the camera is drawing more than its negotiated class allows.

  • Check the switch's port power reading first: zero watts drawn means a detection or cabling problem, not a camera fault.
  • Use a PD alive check or watchdog feature, where the switch supports it, to auto-cycle a camera that stops responding on the network without a truck roll.
  • Reboot a single port remotely through the switch's management interface before assuming the camera itself has failed.
  • Re-terminate and retest the run if power drops only during heavy rain or heat, both signs of a marginal or damaged cable.

Exterior cameras need surge protection and correct earthing at both the camera end and the switch end, since a lightning strike near an outdoor run can travel back into the switch and take out multiple ports at once.

Pro Tip: Keep a written power matrix for every job: each port's steady-state watts, its inrush multiplier, and the switch's total budget. It turns a two-hour fault hunt into a five-minute lookup.

DJC Engineering's field view on professional PoE installation

A single camera added to an existing switch is a reasonable DIY job. A full system, structured cabling, and compliance sign-off are not. A proper site survey and handover means tested cable runs, labeled ports, a documented power budget, and a commissioning report, the details that separate a system that works from one that mostly works.

— Dylan

Get a professionally engineered PoE CCTV system

Sizing power classes, running compliant cabling, and setting up surge protection are essential parts of professional work across structured cabling, PoE switch installation, and 4K CCTV commissioning with AI-capable cameras. A site survey can cover camera count, run lengths, and power budget before any quote is written, so port counts and switch capacity are known before installation day.

Djcengineering

If you want a system specified once and installed correctly the first time, our security camera installation services cover the full scope from cabling to commissioning, and you can start with a security systems enquiry to get a site survey booked.

Sources

FAQ

What is PoE on CCTV?

PoE, or Power over Ethernet, delivers both electrical power and network data to a CCTV camera over a single Ethernet cable, removing the need for a separate power run. The camera acts as the Powered Device while a switch or injector supplies power as the PSE after a detection and classification handshake.

Is PoE good for security cameras?

PoE is the standard approach for modern IP security cameras because it simplifies installation to one cable per camera and supports centralized power management through a managed switch. It also allows features like remote port reboot and per-camera power monitoring that separate power supplies cannot offer.

Do cameras need PoE or PoE+?

It depends on the camera's features: a basic fixed camera without IR or heating usually runs fine on standard 802.3af PoE, while cameras with infrared illuminators, heaters, or PTZ motors typically need 802.3at PoE+ or higher. Checking the camera's rated maximum wattage against the standard's power ceiling is the reliable way to decide.

Which PoE switch is best for CCTV?

The right switch depends on camera count and power draw rather than one universal model: a managed switch with per-port power monitoring, sufficient total PSE budget, and support for the camera's PoE class (802.3af, at, or bt) is the general requirement. For systems mixing heated PTZ units with fixed cameras, confirm the switch supports 802.3bt Type 3 or Type 4 on the ports that need it.

How do I verify a PoE camera is compatible with my switch?

Compare the camera's PoE class and maximum rated wattage, found on its datasheet, against the switch's per-port power delivery and PoE standard support. A mismatch typically shows up immediately as a camera that will not power on or that loses features like IR or heating once running.
